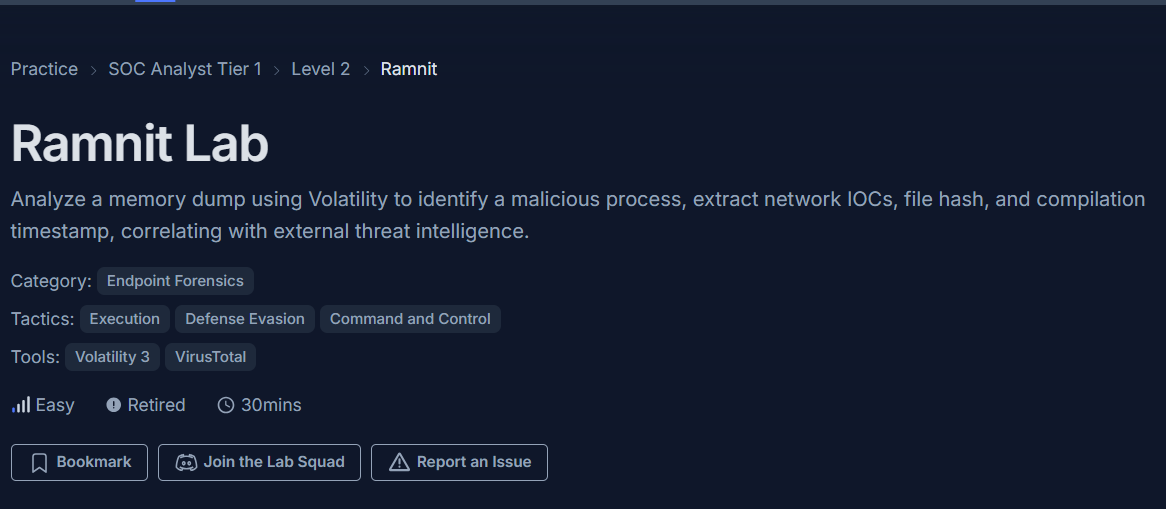

Malware Analysis Report: Ramnit — Tracking a Malicious ChromeSetup Downloader

Platform: CyberDefenders
Challenge: Ramnit
Category: Malware Analysis
Difficulty: Easy
Tools: Static Analysis Tools, OSINT, Threat Intelligence Platforms
Achievement: Proof of Completion

1. Executive Summary

Incident Type: Malware Delivery / Trojan Downloader

Malware Family: Ramnit

During routine endpoint monitoring, suspicious network activity and unusual process execution were detected on a user’s workstation. Investigation revealed that the user had downloaded a disguised executable named ChromeSetup.exe. Instead of a legitimate Google Chrome installer, this file proved to be a delivery mechanism for the Ramnit malware. The malware established command and control (C2) communication with a server located in Hong Kong, utilizing specific domains for continued instruction polling and potential data exfiltration.

Indicators of Compromise (IOCs)

Type	Indicator	Description
Malicious Process	ChromeSetup.exe	Masqueraded process name for Ramnit.
File Path	C:\Users\alex\Downloads\ChromeSetup.exe	Initial execution path on the victim machine.
Attacker IP	58.64.204.181	C2 server IP address (Hong Kong).
C2 Domain	dnsnb8[.]net	Domain used by Ramnit for command polling.
Malware Hash (SHA-1)	280c9d36039f9432433893dee6126d72b9112ad2	Hash of the malicious ChromeSetup.exe.

MITRE ATT&CK Mapping Overview

Tactic	Technique	ID
Initial Access	User Execution: Malicious File	T1204.002
Defense Evasion	Masquerading	T1036
Command & Control	Application Layer Protocol	T1071
Command & Control	Dynamic Resolution	T1568

---

2. Phase 1: Endpoint Triage & Execution Tracking (Questions 1 & 2)

Objective: Identify the malicious process and determine its origin on the local filesystem.

The initial alert stemmed from anomalous activity originating from what appeared to be a standard browser installer. Attackers frequently name malicious payloads after popular, trusted software (like Chrome, Zoom, or Adobe Reader) to trick users into executing them voluntarily.

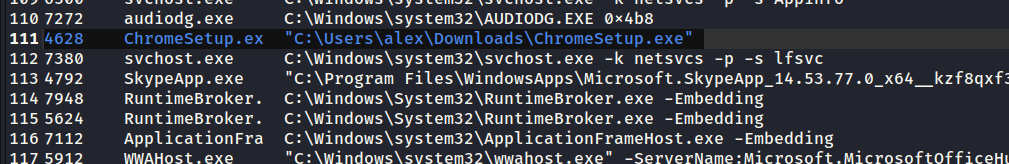

Further inspection of the process details revealed its execution path. The executable was launched from the user’s Downloads directory, strongly indicating a drive-by download or phishing vector where the user was socially engineered into downloading the file.

Why this matters: Malicious files executing from the Downloads or Temp folders under a user’s profile (%USERPROFILE%) are classic indicators of initial access. Legitimate system-level software like browsers typically run from Program Files after the initial installation phase.

Answer Q1

What is the name of the process responsible for the suspicious activity?

ChromeSetup.exe

Answer Q2

What is the exact path of the executable for the malicious process?

C:\Users\alex\Downloads\ChromeSetup.exe

---

3. Phase 2: Static Analysis & Malware Fingerprinting (Questions 5 & 6)

Objective: Extract the file hash and compilation timestamp to build a threat profile and search for existing intelligence.

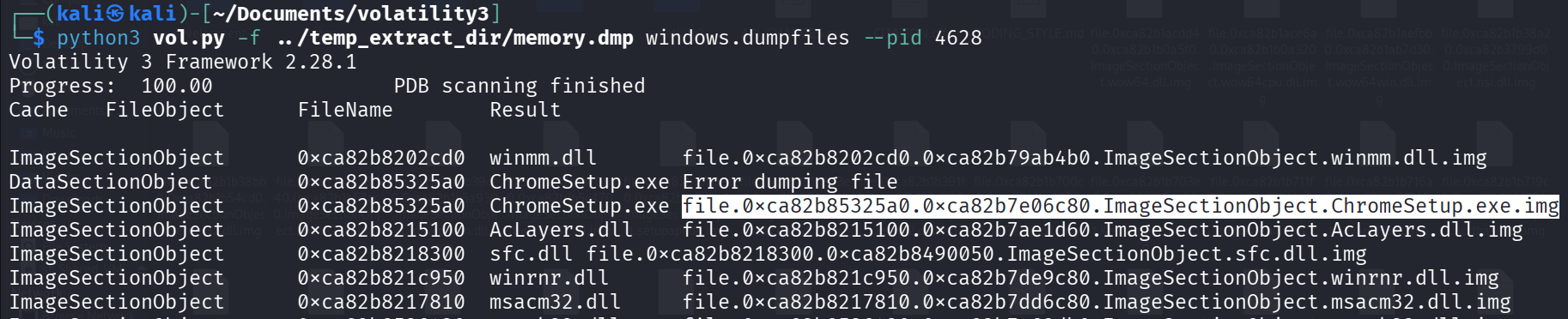

To properly identify the malware and check if it is a known threat, we must extract its cryptographic hash. Generating the SHA-1 hash of the executable allows analysts to query Threat Intelligence platforms like VirusTotal or internal MISP instances.

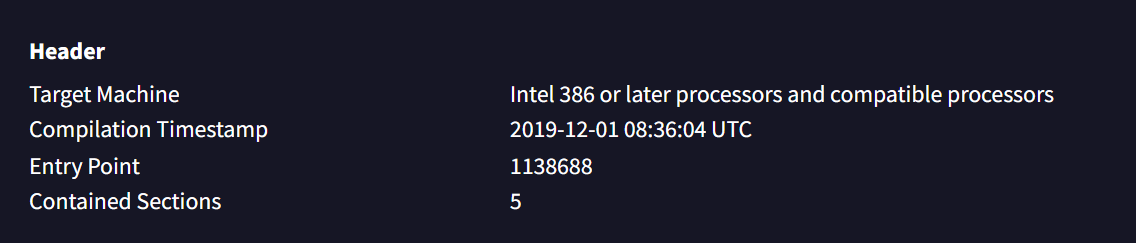

Additionally, static analysis of the Portable Executable (PE) headers reveals the compilation timestamp. This timestamp indicates when the malware author compiled the code. While attackers can forge this (timestomping), when legitimate, it helps correlate the malware with specific campaigns or threat actor activity periods.

Why this matters: The compilation timestamp 2019-12-01 08:36 tells us this is an older malware sample or variant. Correlating this timestamp with the infection date can indicate whether the attacker is using fresh, custom-compiled malware or repurposing older, well-known commodity malware like Ramnit.

Answer Q5

Hashes serve as unique identifiers for files, assisting in the detection of similar threats across different machines. What is the SHA1 hash of the malware executable?

280c9d36039f9432433893dee6126d72b9112ad2

Answer Q6

Examining the malware’s development timeline can provide insights into its deployment. What is the compilation timestamp for the malware?

2019-12-01 08:36

---

4. Phase 3: Network Behavior & C2 Infrastructure (Questions 3, 4, & 7)

Objective: Analyze the malware’s network communications to identify its Command and Control (C2) servers.

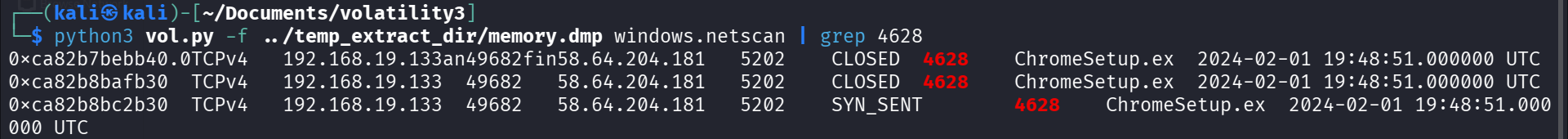

Malware rarely operates in isolation; it needs to “phone home” to receive instructions or exfiltrate data. Dynamic analysis and network monitoring revealed the ChromeSetup.exe process initiating an outbound connection to an external IP address.

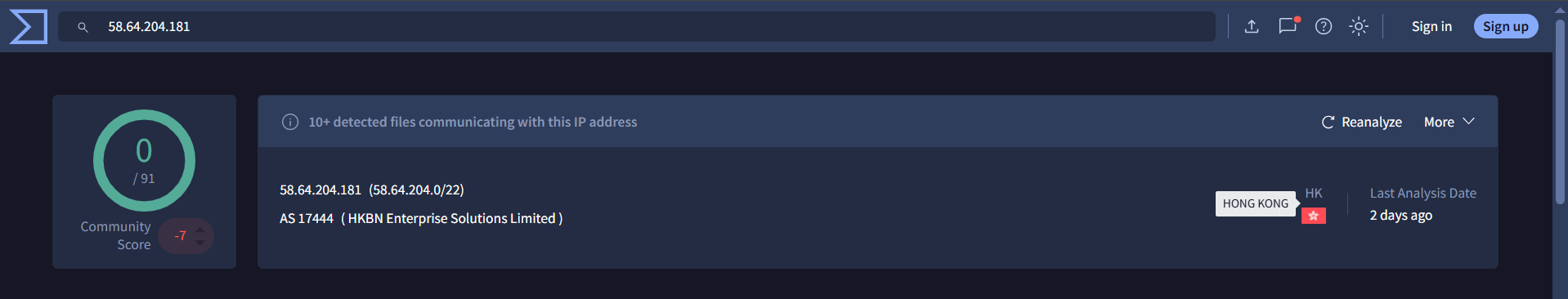

Using OSINT IP geolocation tools, this IP address was traced to Hong Kong. Geolocation, while not definitively attributing the attack to a specific nation-state (as attackers use proxies and compromised infrastructure globally), is useful for identifying anomalous traffic patterns—especially if the victim organization has no business operations in that region.

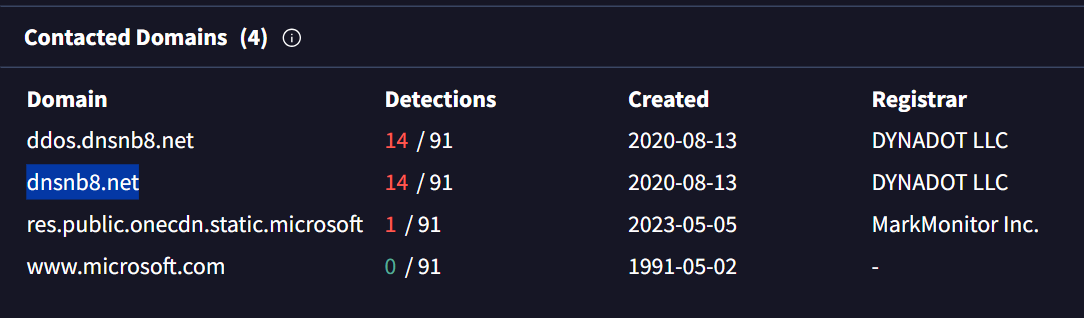

Further network analysis revealed the specific domain the malware was resolving to communicate with its C2 server: dnsnb8.net. Extracting the C2 domain is critical for incident response, as IP addresses can change rapidly (Fast Flux), but domains provide a more durable indicator to block at the DNS level (e.g., Pi-hole, corporate DNS sinkholes).

Analyst Note: Finding the C2 domain dnsnb8.net allows the SOC to perform a retroactive hunt across the entire network. Searching DNS logs for any other internal hosts querying this domain will quickly identify if the infection has spread or if other users fell for the same phishing lure.

Answer Q3

Identifying network connections is crucial for understanding the malware’s communication strategy. What IP address did the malware attempt to connect to?

58.64.204.181

Answer Q4

To determine the specific geographical origin of the attack, Which city is associated with the IP address the malware communicated with?

Hong Kong

Answer Q7

Identifying the domains associated with this malware is crucial for blocking future malicious communications and detecting any ongoing interactions with those domains within our network. Can you provide the domain connected to the malware?

dnsnb8.net

---

5. Reconstructed Incident Timeline

Based on the file properties, static analysis, and network behavior, we can reconstruct the infection flow:

Step	Kill Chain Phase	Action	Evidence Source
1	Weaponization	Ramnit payload compiled by attacker	PE Header Timestamp: 2019-12-01 08:36
2	Delivery	User alex downloads malicious file disguised as browser installer	Path: C:\Users\alex\Downloads\ChromeSetup.exe
3	Execution	User manually executes ChromeSetup.exe, triggering the Ramnit infection	Process execution logs
4	C2	Malware queries dnsnb8.net to resolve attacker infrastructure	DNS traffic
5	C2	Malware establishes connection with C2 server at 58.64.204.181 (Hong Kong)	Network connection logs

Key Observation: The attack relies heavily on user interaction and masquerading (ChromeSetup.exe). The gap between the compilation time (2019) and active deployment suggests the attacker is using an off-the-shelf or older builder of the Ramnit malware, relying on social engineering rather than zero-day exploits to gain initial access.

---

6. Conclusion

The Ramnit investigation highlights a classic malware delivery mechanism utilizing social engineering and masquerading. Key findings:

1. Initial Access: A user (alex) was tricked into downloading and executing a malicious file disguised as a Google Chrome installer (ChromeSetup.exe).
2. Identification: The SHA-1 hash 280c9d36039f9432433893dee6126d72b9112ad2 and a compilation timestamp of Dec 2019 confirm this as a Ramnit variant.
3. C2 Infrastructure: The malware communicated with dnsnb8[.]net resolving to a Hong Kong-based IP (58.64.204.181).

Key Takeaways for the SOC:

1. DNS Sinkholing: Immediately add dnsnb8[.]net to the corporate DNS blocklist/sinkhole.
2. Network Blocking: Block all outbound traffic to 58.64.204.181 at the perimeter firewall.
3. Retroactive Hunting: Query EDR and DNS logs for any other hosts executing ChromeSetup.exe from a Downloads directory, or querying the identified C2 domain.
4. User Awareness: Remind users that legitimate software updates should only be downloaded from official vendor websites, or deployed via central IT management systems, never from random pop-ups.

---

Analysis Date: June 15, 2026 Analyst: El OMARI Zakaria
