Incident Response Report: PoisonedCredentials — LLMNR/NBT-NS Poisoning & SMB Relay

Posted
By El OMARI Zakaria
7 min read
Incident Response Report: PoisonedCredentials — LLMNR/NBT-NS Poisoning & SMB Relay

Platform: CyberDefenders Challenge: PoisonedCredentials Category: Network Forensics Difficulty: Easy Tools: Wireshark Achievement: Proof of Completion

1. Executive Summary

Incident Type: LLMNR/NBT-NS Poisoning / Credential Theft / SMB Relay

Affected Systems: Multiple workstations on the 192.168.232.0/24 subnet

The organization’s security team detected a surge in suspicious network activity. Analysis of the captured PCAP confirmed an active LLMNR/NBT-NS poisoning attack in progress. A rogue machine was silently answering name resolution broadcasts from other workstations, intercepting their authentication attempts, and performing a live SMB Relay attack to access adjacent systems — all without ever cracking a single password hash offline.

Indicators of Compromise (IOCs)

TypeIndicatorDescription
Rogue Machine IP192.168.232.215Attacker running Responder/Inveigh
Rogue HostnameKALIConfirmed Kali Linux attack platform
First Victim IP192.168.232.162Initiated broadcast for fileshaare
Second Victim IP192.168.232.176Targeted by SMB relay attack
Mistyped Query (V1)fileshaareTypo that triggered the poisoning
Compromised UsernamejanesmithNetNTLMv2 hash captured via SMB
Relay Target HostnameACCOUNTINGPCMachine accessed via credential relay
Protocol ExploitedLLMNR (UDP 5355) / NBT-NS (UDP 137)Unauthenticated broadcast protocols

MITRE ATT&CK Mapping Overview

TacticTechniqueID
Credential AccessLLMNR/NBT-NS PoisoningT1557.001
Credential AccessNTLM Hash CaptureT1557
Lateral MovementSMB Relay AttackT1550.002
CollectionMan-in-the-MiddleT1557

2. Phase 1: Understanding the Attack Vector

Objective: Establish the technical foundation for why LLMNR/NBT-NS poisoning is possible.

Before analyzing specific packets, it is critical to understand the underlying Windows name resolution fallback mechanism that makes this attack possible.

When a Windows machine attempts to connect to a hostname (e.g., \\fileshaare), the operating system follows this resolution order:

  1. DNS → Server returns NXDOMAIN (hostname not found — because it’s a typo)
  2. LLMNR (UDP 5355) → Multicast broadcast: “Does anyone on the local network know where fileshaare is?”
  3. NBT-NS (UDP 137) → Broadcast: “Does anyone know fileshaare?”

Because these broadcast protocols have no built-in authentication, any machine on the subnet can respond. An attacker running Responder or Inveigh listens quietly for these queries and immediately sends a spoofed reply: “I am fileshaare. Connect to me.” The victim machine trusts this reply, connects to the attacker, and automatically attempts to authenticate — sending the user’s NetNTLMv2 hash.

Wireshark capture showing LLMNR and NBNS broadcast queries from victim machines flooding the local subnet — the precondition for the poisoning attack. No DNS responses are visible because the queried hostnames don't exist.

3. Phase 2: Identifying the Mistyped Query (Question 1)

Objective: Determine the exact hostname that the victim machine broadcast — the typo that triggered the attack.

Wireshark Filter Used: ip.src == 192.168.232.162 and (llmnr or nbns)

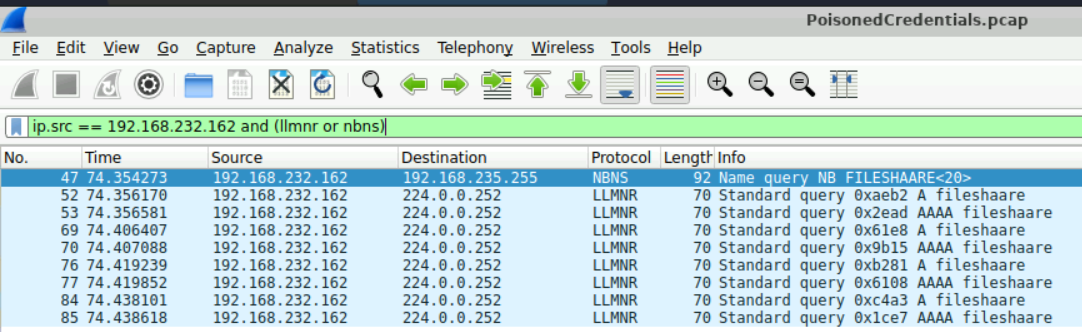

Filtering for broadcast traffic originating from the first victim machine (192.168.232.162) isolates the specific LLMNR query. Inspecting the Info column reveals the hostname being requested.

Analyst Note: The attacker does not need to target anyone specifically. Tools like Responder are purely reactive — they simply listen and respond to every failed name resolution query they observe on the subnet. A single typo from any user is all it takes to expose their credentials.

Answer Q1

What was the mistyped query made by the machine at 192.168.232.162?

fileshaare

4. Phase 3: Identifying the Rogue Machine (Questions 2 & 3)

Objective: Identify the attacker’s IP address and the hostname of their rogue machine.

Wireshark Filter Used: ip.dst == 192.168.232.162 and (llmnr or nbns)

By flipping the filter to show traffic destined for the victim, the attacker’s spoofed response is immediately visible — falsely claiming that fileshaare resolves to their own IP.

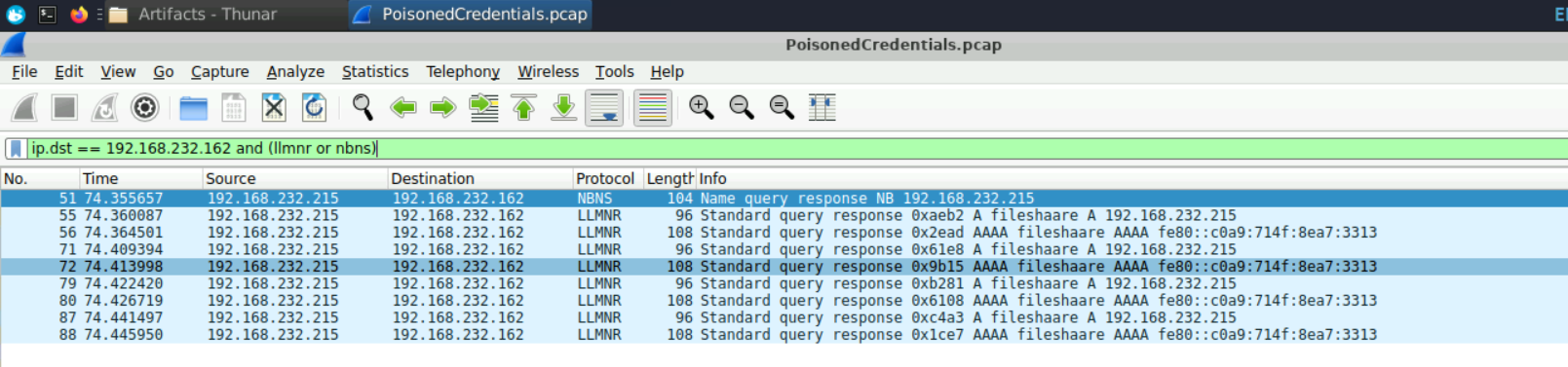

Wireshark packet showing the LLMNR spoofed response from 192.168.232.215 sent back to the victim at 192.168.232.162, falsely claiming it is the requested hostname.

To identify the attacker’s NetBIOS hostname, we examine the NBT-NS packets from the rogue machine. The registered hostname is present in the packet data:

Wireshark NBT-NS packet from the rogue machine at 192.168.232.215 showing the NetBIOS hostname KALI registered on the network — confirming the attacker is using a Kali Linux machine.

The hostname KALI confirms the attacker is operating from a default Kali Linux distribution — a notable operational security failure that makes attribution straightforward.

Answer Q2

What is the IP address of the rogue machine?

192.168.232.215

Answer Q3

What is the hostname of the rogue machine?

KALI

5. Phase 4: Credential Theft — Captured Usernames (Questions 4 & 5)

Objective: Identify the usernames of the accounts whose credentials were captured.

Wireshark Filter Used: ntlmssp

After the victim machine accepts the spoofed response, it automatically initiates an SMB authentication attempt to the attacker’s IP. Wireshark’s built-in NTLMSSP protocol dissector automatically parses the NTLM handshake, extracting the username directly from the NTLMSSP_AUTH packet.

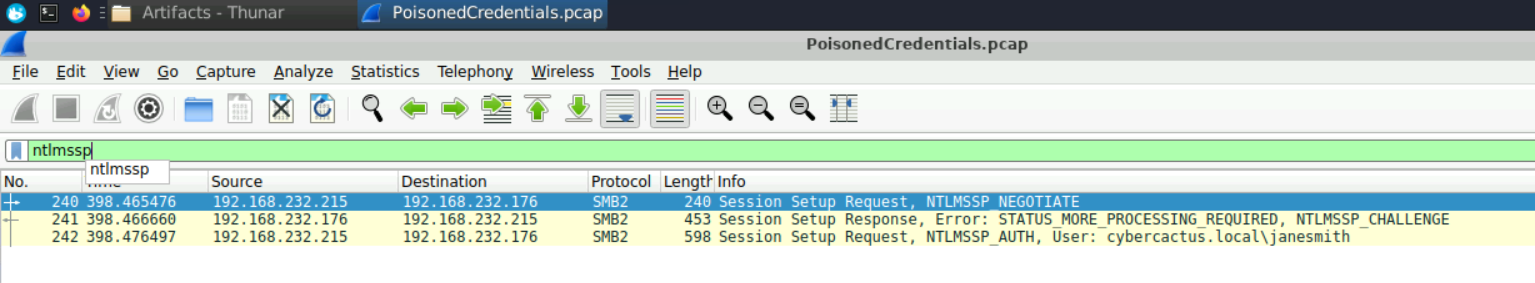

Wireshark NTLMSSP_AUTH packet showing the username field parsed as janesmith — confirming the attacker captured the NetNTLMv2 hash of this user's authentication attempt.

Wireshark NTLMSSP authentication from a second victim showing a different username in the authentication packet — evidence of the attacker targeting multiple machines.

Answer Q4

What is the username of the first compromised account?

janesmith

Answer Q5

What is the username of the second compromised account?

janed

6. Phase 5: Scoping the Impact — Second Victim (Question 6)

Objective: Identify all machines that received poisoned responses to determine the full scope of the incident.

Wireshark Filter Used: ip.src == 192.168.232.215 and (llmnr or nbns) and ip.dst != 192.168.232.162

By filtering for all poisoning responses from the rogue machine that were NOT sent to the already-identified first victim, a second target IP is revealed:

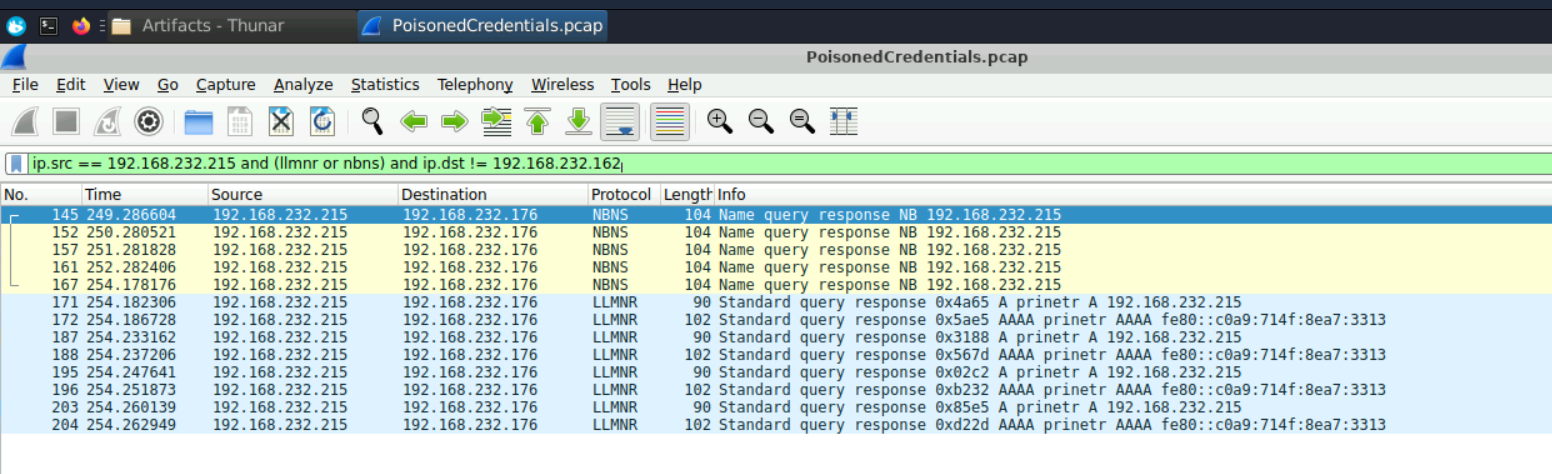

Wireshark display showing the second victim IP 192.168.232.176 receiving poisoned LLMNR/NBT-NS responses from the rogue machine 192.168.232.215 for a different mistyped hostname.

Answer Q6

What is the IP of the second machine that received poisoned responses?

192.168.232.176

7. Phase 6: SMB Relay — Lateral Movement Without Cracking (Questions 7 & 8)

Objective: Confirm the SMB relay attack and identify the target machine accessed via relayed credentials.

This is the most dangerous aspect of this attack. The attacker is not just capturing hashes to crack offline — they are relaying the credentials in real-time to a third machine. The flow is:

  1. Victim A (Jane) authenticates to the Attacker
  2. Attacker simultaneously initiates an SMB session with Victim B (192.168.232.176)
  3. Victim B sends a cryptographic challenge back to the Attacker
  4. Attacker forwards that exact challenge to Victim A
  5. Victim A signs the challenge with their password hash and sends it back
  6. Attacker forwards Jane’s valid response to Victim B → Access granted

To identify the relay target’s hostname, we examine the NTLMSSP_CHALLENGE packet from the second victim — it contains the target machine’s NetBIOS name in the Target Info block.

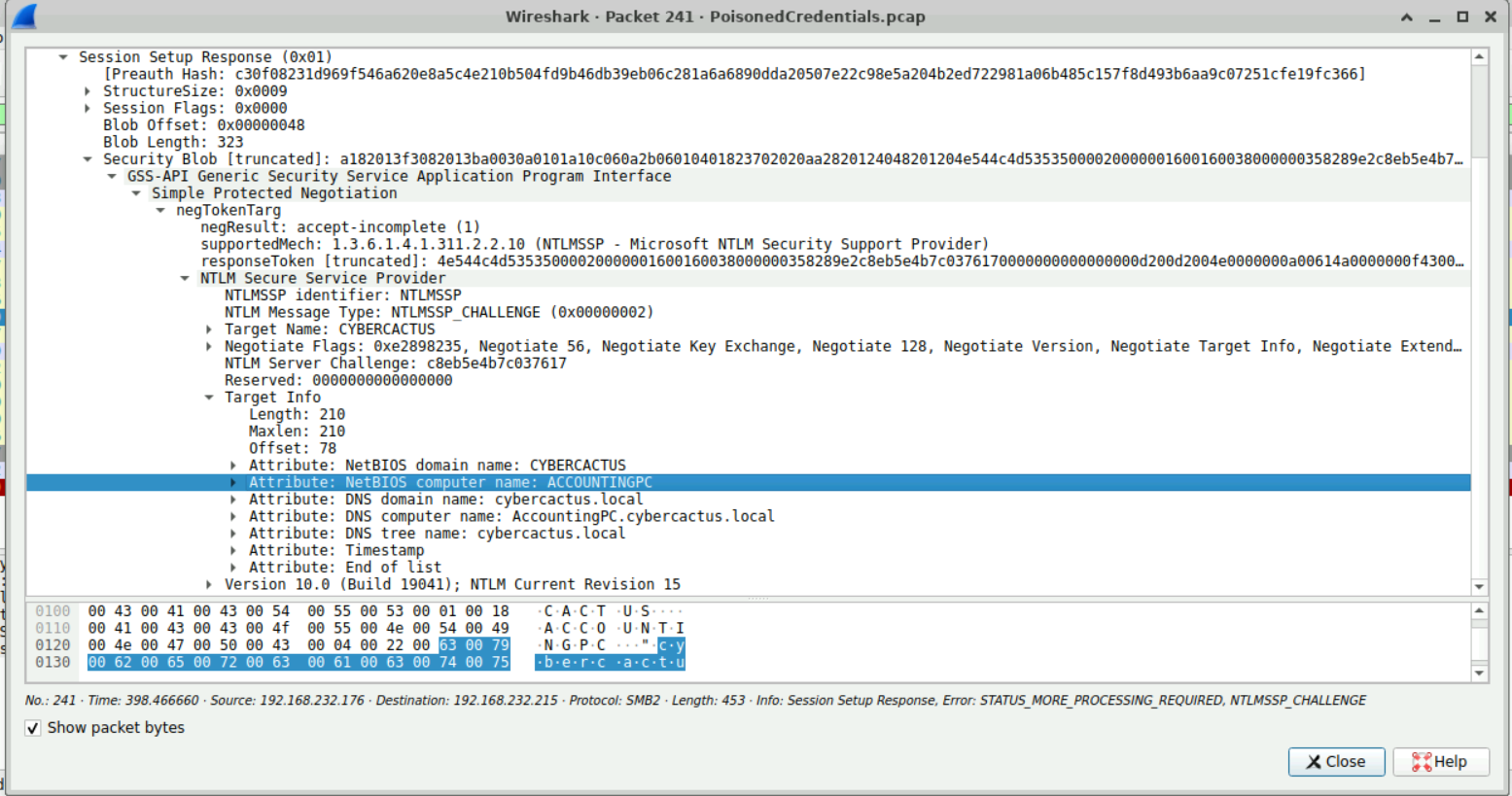

Wireshark NTLMSSP_CHALLENGE packet from 192.168.232.176 with the Target Info block expanded, showing the NetBIOS computer name ACCOUNTINGPC — the machine the attacker gained access to via SMB relay.

Wireshark SMB2 Tree Connect Request showing the specific shared folder path \ACCOUNTINGPC\accounts that the attacker accessed after successfully relaying Jane's credentials.

Analyst Note: SMB Relay is more dangerous than offline hash cracking because it grants immediate access — no time spent on dictionary attacks or GPU cracking rigs. The only effective technical control against SMB Relay is enabling SMB Signing on all domain systems. This cryptographically binds the SMB session to the original authenticating client, making relayed credentials cryptographically invalid.

Answer Q7

What is the hostname of the machine accessed via SMB relay?

ACCOUNTINGPC

Answer Q8

What shared folder did the attacker access on the relay target?

accounts

8. Remediation & Mitigation Recommendations

To prevent future incidents of this nature, the following actions must be taken:

Disable LLMNR and NBT-NS

These legacy protocols have no place in a modern network environment. Disable them via Group Policy:

  • LLMNR: Computer Configuration > Administrative Templates > Network > DNS Client > Turn off Multicast Name Resolution = Enabled
  • NBT-NS: Modify NIC properties → WINS tab → Disable NetBIOS over TCP/IP

Enable SMB Signing Domain-Wide

This is the single most effective control against SMB Relay attacks. Enforce via GPO:

  • Computer Configuration > Windows Settings > Security Settings > Local Policies > Security Options > Microsoft network server: Digitally sign communications (always) = Enabled

Network Monitoring

  • Alert on any single IP responding to LLMNR/NBT-NS queries for multiple different hostnames — this is the behavioral fingerprint of Responder.
  • Monitor for NTLMSSP_AUTH packets where the source IP differs from the IP that sent the challenge (relay indicator).

9. Conclusion

The PoisonedCredentials investigation reveals how a single user typo can cascade into a domain-wide credential compromise. Key findings:

  1. Attack Vector: LLMNR/NBT-NS broadcast exploitation using Responder on Kali Linux (192.168.232.215).
  2. Initial Trigger: fileshaare typo from 192.168.232.162 triggered the poisoning.
  3. Credential Theft: janesmith and janed had their NetNTLMv2 hashes captured.
  4. SMB Relay: ACCOUNTINGPC was accessed in real-time without cracking any hashes.
  5. Scope: Two victim machines confirmed; the accounts shared folder was accessed.

Key Takeaways for the SOC:

  1. LLMNR/NBT-NS poisoning is entirely silent — no malware deployed, no exploits used. Detection requires active network traffic monitoring, not endpoint-only security.
  2. SMB Relay = instant lateral movement without needing to know any passwords. Disable legacy protocols and enable SMB Signing before assuming your network is safe.
  3. Wireshark’s NTLMSSP dissector is invaluable — it automatically parses NTLM handshakes and reveals usernames, domains, and workstations, turning raw packet data into actionable intelligence.
  4. One typo = one compromised session. User education is not a sufficient control for this attack — technical controls (disable LLMNR, enable SMB Signing) are the only reliable defense.

Analysis Date: April 17, 2026 Analyst: El OMARI Zakaria
